geom_bin_2d: warning message when using weight without group

[szimmer]

I found a problem with geom_bin_2d

I expected to be able to use a weight variable without a group variable but get a warning when I do this. The weight does seem to be used appropriately as the result is different when not using the weight.

Here is the code to reproduce the bug:

library(survey)
#> Loading required package: grid
#> Loading required package: Matrix
#> Loading required package: survival
#>
#> Attaching package: 'survey'
#> The following object is masked from 'package:graphics':
#>
#>     dotchart
library(ggplot2)

data(api)

ggplot(aes(x=api99, y=api00, weight=pw), data=apiclus2) +
  geom_bin_2d()
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

ggplot(aes(x=api99, y=api00), data=apiclus2) +
  geom_bin_2d()

^{Created on 2023-03-05 with reprex v2.0.2}

Standard output and standard error

-- nothing to show --

Session info

sessioninfo::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 4.2.2 (2022-10-31 ucrt)
#>  os       Windows 10 x64 (build 22621)
#>  system   x86_64, mingw32
#>  ui       RTerm
#>  language (EN)
#>  collate  English_United States.utf8
#>  ctype    English_United States.utf8
#>  tz       America/New_York
#>  date     2023-03-05
#>  pandoc   2.19.2 @ C:/Program Files/RStudio/resources/app/bin/quarto/bin/tools/ (via rmarkdown)
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version date (UTC) lib source
#>  assertthat    0.2.1   2019-03-21 [1] CRAN (R 4.2.1)
#>  cli           3.4.1   2022-09-23 [1] CRAN (R 4.2.2)
#>  colorspace    2.0-3   2022-02-21 [1] CRAN (R 4.2.1)
#>  curl          4.3.2   2021-06-23 [1] CRAN (R 4.2.1)
#>  DBI           1.1.3   2022-06-18 [1] CRAN (R 4.2.1)
#>  digest        0.6.29  2021-12-01 [1] CRAN (R 4.2.1)
#>  dplyr         1.0.10  2022-09-01 [1] CRAN (R 4.2.1)
#>  evaluate      0.16    2022-08-09 [1] CRAN (R 4.2.1)
#>  fansi         1.0.3   2022-03-24 [1] CRAN (R 4.2.1)
#>  farver        2.1.1   2022-07-06 [1] CRAN (R 4.2.1)
#>  fastmap       1.1.0   2021-01-25 [1] CRAN (R 4.2.1)
#>  fs            1.5.2   2021-12-08 [1] CRAN (R 4.2.1)
#>  generics      0.1.3   2022-07-05 [1] CRAN (R 4.2.1)
#>  ggplot2     * 3.4.0   2022-11-04 [1] CRAN (R 4.2.2)
#>  glue          1.6.2   2022-02-24 [1] CRAN (R 4.2.1)
#>  gtable        0.3.0   2019-03-25 [1] CRAN (R 4.2.1)
#>  highr         0.9     2021-04-16 [1] CRAN (R 4.2.1)
#>  htmltools     0.5.3   2022-07-18 [1] CRAN (R 4.2.1)
#>  httr          1.4.4   2022-08-17 [1] CRAN (R 4.2.1)
#>  knitr         1.40    2022-08-24 [1] CRAN (R 4.2.1)
#>  labeling      0.4.2   2020-10-20 [1] CRAN (R 4.2.0)
#>  lattice       0.20-45 2021-09-22 [2] CRAN (R 4.2.2)
#>  lifecycle     1.0.3   2022-10-07 [1] CRAN (R 4.2.2)
#>  magrittr      2.0.3   2022-03-30 [1] CRAN (R 4.2.1)
#>  Matrix      * 1.5-1   2022-09-13 [1] CRAN (R 4.2.1)
#>  mime          0.12    2021-09-28 [1] CRAN (R 4.2.0)
#>  mitools       2.4     2019-04-26 [1] CRAN (R 4.2.1)
#>  munsell       0.5.0   2018-06-12 [1] CRAN (R 4.2.1)
#>  pillar        1.8.1   2022-08-19 [1] CRAN (R 4.2.1)
#>  pkgconfig     2.0.3   2019-09-22 [1] CRAN (R 4.2.1)
#>  purrr         0.3.5   2022-10-06 [1] CRAN (R 4.2.1)
#>  R.cache       0.16.0  2022-07-21 [1] CRAN (R 4.2.1)
#>  R.methodsS3   1.8.2   2022-06-13 [1] CRAN (R 4.2.0)
#>  R.oo          1.25.0  2022-06-12 [1] CRAN (R 4.2.0)
#>  R.utils       2.12.0  2022-06-28 [1] CRAN (R 4.2.1)
#>  R6            2.5.1   2021-08-19 [1] CRAN (R 4.2.1)
#>  reprex        2.0.2   2022-08-17 [1] CRAN (R 4.2.1)
#>  rlang         1.0.6   2022-09-24 [1] CRAN (R 4.2.1)
#>  rmarkdown     2.16    2022-08-24 [1] CRAN (R 4.2.1)
#>  rstudioapi    0.13    2020-11-12 [1] CRAN (R 4.2.1)
#>  scales        1.2.0   2022-04-13 [1] CRAN (R 4.2.1)
#>  sessioninfo   1.2.2   2021-12-06 [1] CRAN (R 4.2.1)
#>  stringi       1.7.8   2022-07-11 [1] CRAN (R 4.2.1)
#>  stringr       1.4.1   2022-08-20 [1] CRAN (R 4.2.1)
#>  styler        1.7.0   2022-03-13 [1] CRAN (R 4.2.1)
#>  survey      * 4.1-1   2021-07-19 [1] CRAN (R 4.2.1)
#>  survival    * 3.4-0   2022-08-09 [2] CRAN (R 4.2.2)
#>  tibble        3.1.8   2022-07-22 [1] CRAN (R 4.2.1)
#>  tidyselect    1.1.2   2022-02-21 [1] CRAN (R 4.2.1)
#>  utf8          1.2.2   2021-07-24 [1] CRAN (R 4.2.1)
#>  vctrs         0.5.1   2022-11-16 [1] CRAN (R 4.2.2)
#>  withr         2.5.0   2022-03-03 [1] CRAN (R 4.2.1)
#>  xfun          0.32    2022-08-10 [1] CRAN (R 4.2.1)
#>  xml2          1.3.3   2021-11-30 [1] CRAN (R 4.2.1)
#>  yaml          2.3.5   2022-02-21 [1] CRAN (R 4.2.1)
#>
#>  [1] C:/Users/steph/AppData/Local/R/win-library/4.2
#>  [2] C:/Program Files/R/R-4.2.2/library
#>
#> ──────────────────────────────────────────────────────────────────────────────

[teunbrand]

Thanks for the report! Is this conceptually similar to #5053, where also an inappropriate warning was emitted?

[szimmer]

Yes, I believe it is the same. Sorry I didn't see that when searching for issues before writing this one.

[teunbrand]

Reviewing when this occurs, I found that many more stats mention dropping weights. I think the weights are being dropped by design, so we don't need these warnings.

library(ggplot2)

ggplot(data.frame(x = 1:2)) +
  aes(x, y = x, weight = x) +
  geom_bin_2d()
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

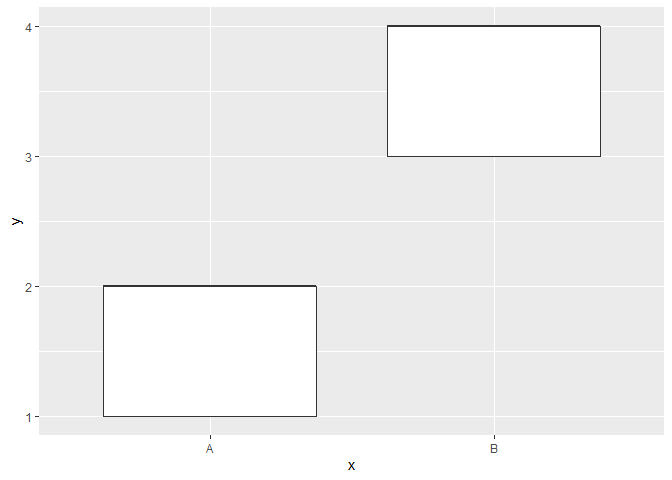

ggplot(data.frame(x = c("A", "A", "B", "B"), y = 1:4)) +
  aes(x, y, weight = seq_along(y)) +
  geom_boxplot()
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

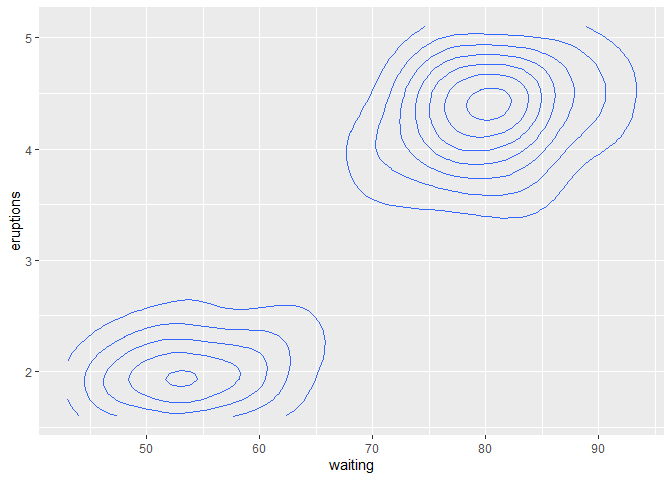

ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
  geom_contour(aes(weight = seq_along(density)))
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

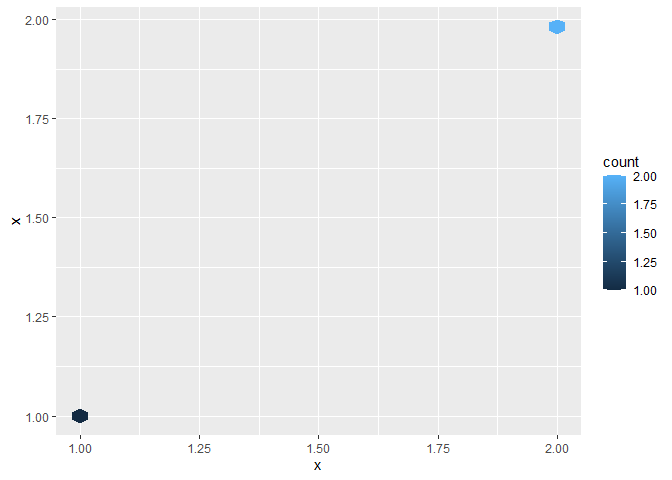

ggplot(data.frame(x = 1:2)) +
  aes(x, y = x, weight = x) +
  geom_hex()
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

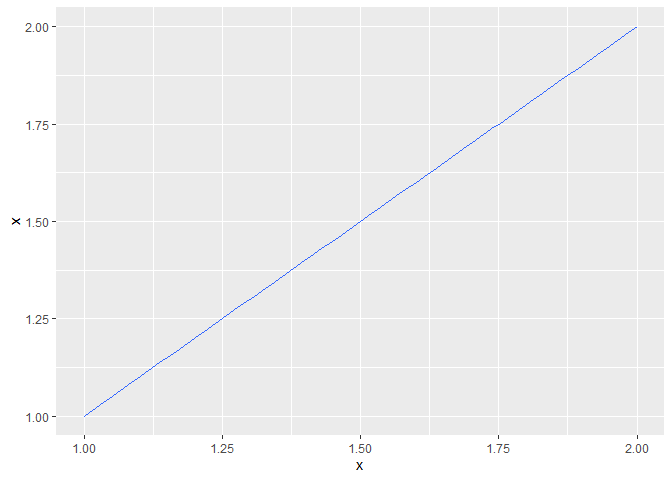

ggplot(data.frame(x = 1:2)) +
  aes(x, x, weight = x) +
  stat_quantile()
#> Smoothing formula not specified. Using: y ~ x
#> Warning: The following aesthetics were dropped during statistical transformation: weight
#> ℹ This can happen when ggplot fails to infer the correct grouping structure in
#>   the data.
#> ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
#>   variable into a factor?

^{Created on 2023-03-06 with reprex v2.0.2}
