Chip8 Octo Examples

Code examples for Chip8 using the Octo Assembly Language

Displayed below, you will see the examples ordered by complexity and displayed with a description, an image, and comments to help you learn the language. Some examples will include a tutorial to guide you through each part of the example in greater detail.

Helpful Links

To run these examples and other Octo code, there is an online compiler available.

There is also a detailed manual for Octo.

In addition to the above manual, those looking to learn the Octo language should check out the beginner's guide and the intermediate guide.

The Examples

The examples provided in this repository, complete with images and descriptions.

Drawing a Sprite

Detailed tutorial for this example

The beginning of a program is defined with the main label as seen below.

Chip8 provides a screen which is 64x32 pixels.

There are 16 registers available: v0-v9 and va-vf (v0, v1, v2, v3, v4, v5, v6, v7, v8, v9, va, vb, vc, vd, ve, vf). These registers can hold a number value from 0 to 255.

There is also a special register called i which can store an address. In this example, it will be storing the address for the ball sprite so it can be used by the sprite instruction when drawing.

Sprites are drawn by providing the address of a sprite ("ball" in this example) to the i register and calling the sprite instruction with 3 parameters: x position, y position, and sprite height. Sprites can have a maximum height of 15 pixels. They are always 8 pixels wide.

In this example, the ball sprite is made up of hexadecimal numbers (denoted by 0x at the start of each).

You can also define a sprite with binary numbers (started with 0b). Sprites can be made up of rows of binary numbers. Keeping in mind the fact that sprites are always 8 pixels wide, you could represent a sprite with a height of 1 like this:

0b01010101

This would place a pixel at every other horizontal position.

Now if we wanted a straight verticle line, we would use multiple rows like so:

0b00010000 0b00010000 0b00010000 0b00010000 0b00010000

This would create a verticle line down the middle of your sprite which is now 5 pixels tall (5 rows).

Additionally, when drawing a sprite you will invert the pixels occupying that space. Drawing a sprite over another will erase what was there as if no pixels were drawn in that space by your program. Likewise, drawing where a sprite is not already being drawn will switch the pixels for that area and allow your sprite to be seen.

: ball
0x18 0x3C 0x7E 0x7E 0x3C 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

: main
	v0 := 8
	v1 := 10

	i := ball # Assign our ball sprite to the i register so the sprite instruction can use it

	sprite v0 v1 6 # Sprite instruction. Parameters: x, y, sprite height

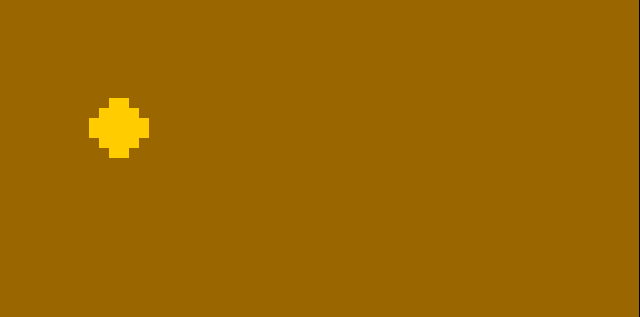

Result:

Additionally, you could extend this example by making use of the if statement and aliases:

: ball
0x18 0x3C 0x7E 0x7E 0x3C 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

# Aliases are pretty straight forward.
# :alias <name> <register> assigns an alias for that register.
:alias x v0
:alias y v1

: main
	x := 8
	y := 10

	v2 := 0 # Switch this to a 1 to trigger the if statement and move your sprite
	if v2 == 1 then x += 10

	i := ball # Assign our ball sprite to the i register so the sprite instruction can use it

	sprite x y 6 # Sprite instruction. Parameters: x, y, sprite height
