A modern alternative to ringing a bell for service, this callbox application alerts Slack or Google Chat when a person presses a button for help.
This Python application was originally written to run on a Raspberry Pi with an attached touchscreen to request support at an IT Help Desk. The following videos demonstrate this type of implementation, interacting with the respective messaging applications via iPad.
Slack: https://youtu.be/wFE2QAVsd6c
Google: https://youtu.be/0p94PBY21JU
Download python_callbox to the location you would like to run the application.
git clone "https://github.com/kev-rob/python_callbox.git"
Navigate to the root of the python_callbox folder and install the requirements.
cd python_callbox/
pip3 install -r requirements.txt
To run the application, from the root of the python_callbox folder execute the following command:
python3 main.py
To integrate python_callbox into your messaging application, you will first need to create a webhook and paste it into weboook.py. You can follow the tutorials provided by each vendor to create the webhook. Other applications that receive webhooks may also work with python_callbox but they have not been tested.
It is recommended to create a dedicated Channel (Slack) or Space (Google) for python_callbox to send its alerts.
Follow this tutorial from Slack to create your webhook:
https://api.slack.com/messaging/webhooks
The following information is available at https://developers.google.com/chat/how-tos/webhooks
Define an incoming webhook
From the chat space menu:
- Select Manage webhooks. A dialog appears that lists any incoming webhooks already defined for the space.
- If this is the space's first webhook, you are prompted to provide a webhook name and avatar URL. If the space already has webhooks, click Add another.
- Fill in the name field and optionally the avatar URL field.
- Click SAVE.
Copy and save the webhook URL
From the Manage webhooks modal, find your webhook and click the copy icon to copy the webhook URL.
Save this URL in your app's source code or configuration so that it can be used as a message destination.

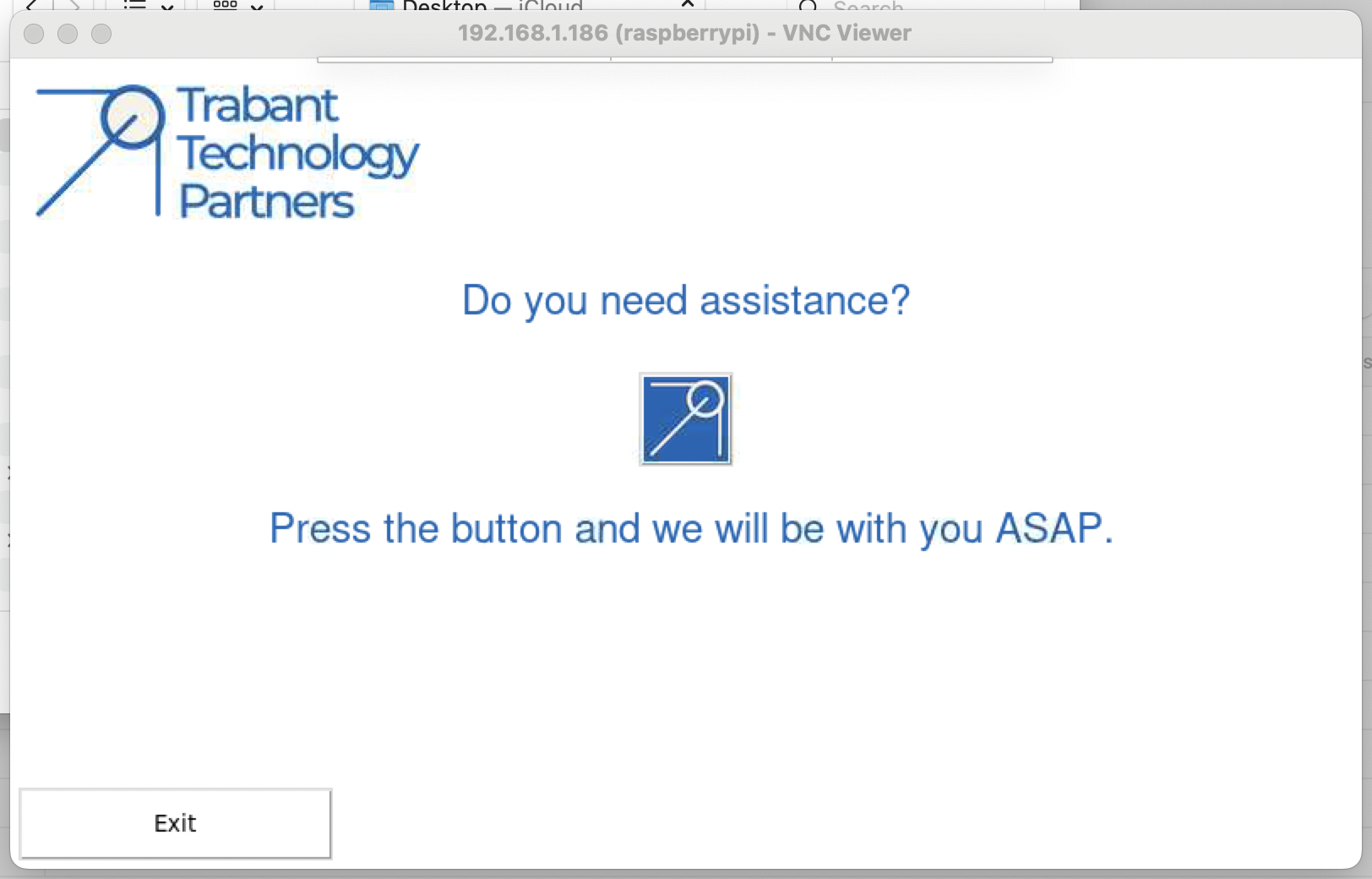

Replace our banner.png and logo.png files with your own banner.png and logo.png files. Banner.png is the wordmark image in the upper left of the screen and logo.png is the icon/button in the center of the screen. Image sizes should be adjusted based on screen size. It is recommended to start with a banner.png of 100px height and a logo.png that is 50px x 50px.
The on-screen text can be customized in main.py. help_text1 and help_text2 are on screen when the callbox application is ready. cancel_text is on-screen after help has been requested until someone cancels the request for help.
The text sent to the messaging application via webhook is stored in the data section of _request.py for the help request message and _cancel.py for the help request cancel message.
